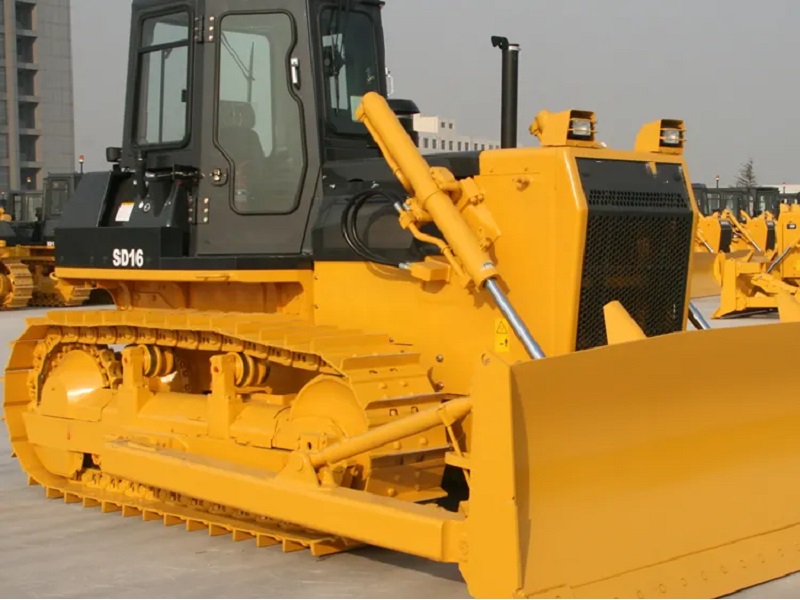

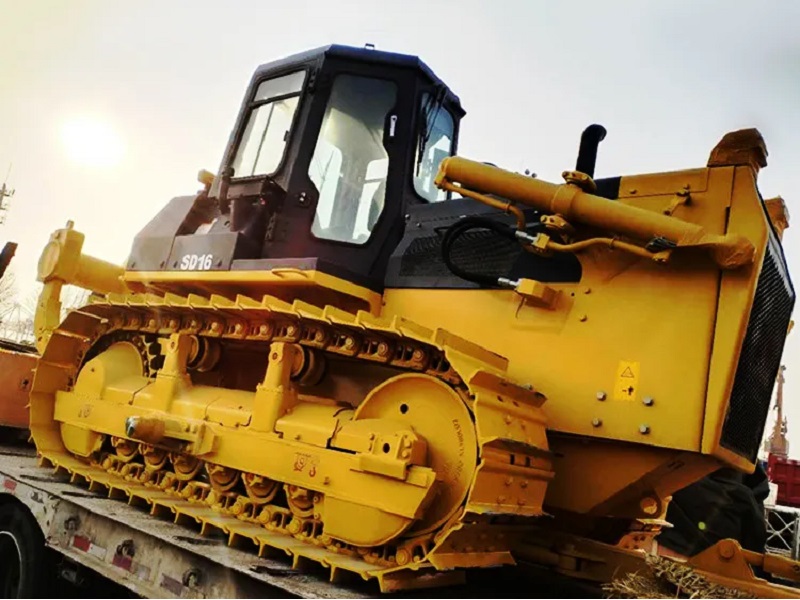

SHANTUI SD16 160HP Mini Tractor Crawler Bulldozer Dozers

SD16 dozers adopt hydraulic drive and operation mode, featuring advanced and reasonable overall structure and good performances. This series dozers features moderate power, high technology extent and extensive application scope and is deeply favored by extensive users.

SD16 dozers adopt hydraulic drive and operation mode, featuring advanced and reasonable overall structure and good performances. This series dozers features moderate power, high technology extent and extensive application scope and is deeply favored by extensive users.

The SHANTUI SD16 dozers use WEICHAI engine. WEICHAI WD10G178E25 feature the advantages of robust power, easy maintenance, and high combustion efficiency and conformed to China-II emission regulation. The planetary power shift transmission with forced lubrication and hydraulically assisted steering system achieve light operations of the machine and feature high transmission power and high productivity.

L*W*H (Ripper not included)	mm	5140*3388*3032
Operating weight (Ripper not included)	t	17
Rated power	kW/rpm	120/1850
Blade type		Straight tilt blade U blade Angle blade
Dozing capacity	m3	Straight tilt blade 4.5 U blade 5 Angle blade 4.3
Ma * drop below ground of blade	mm	540
Lift height of blade	mm	1095

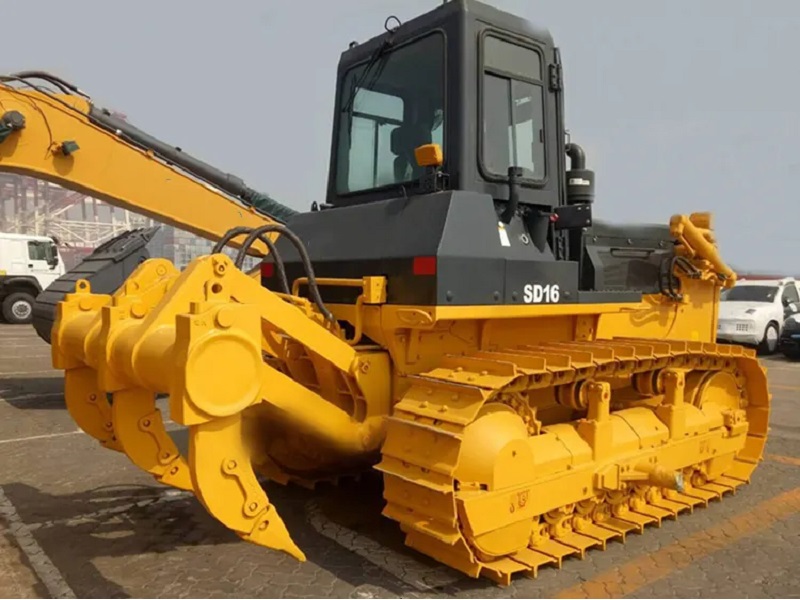

Ripper type		Three-Shank ripper
Ripping depth of ripper	mm	572
Lifting height of ripper	mm	592
Width of track shoe	mm	510
track gauge	mm	1880
