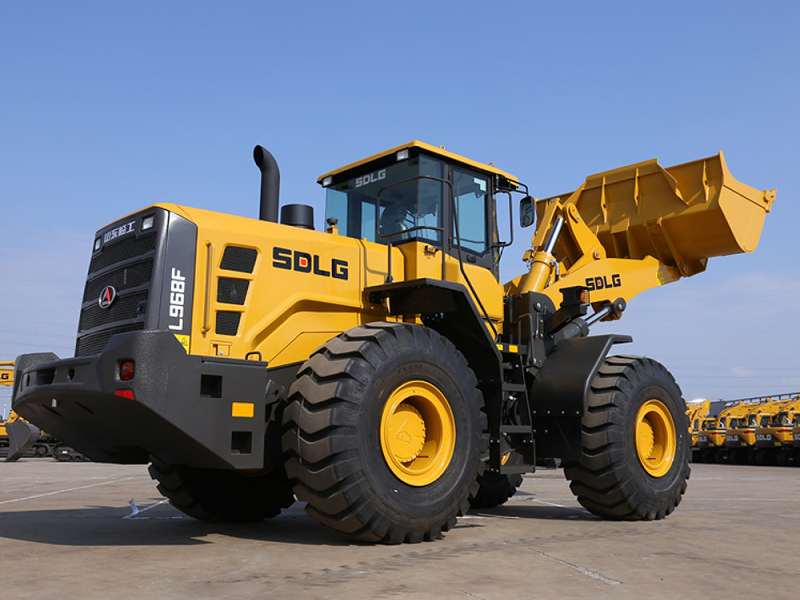

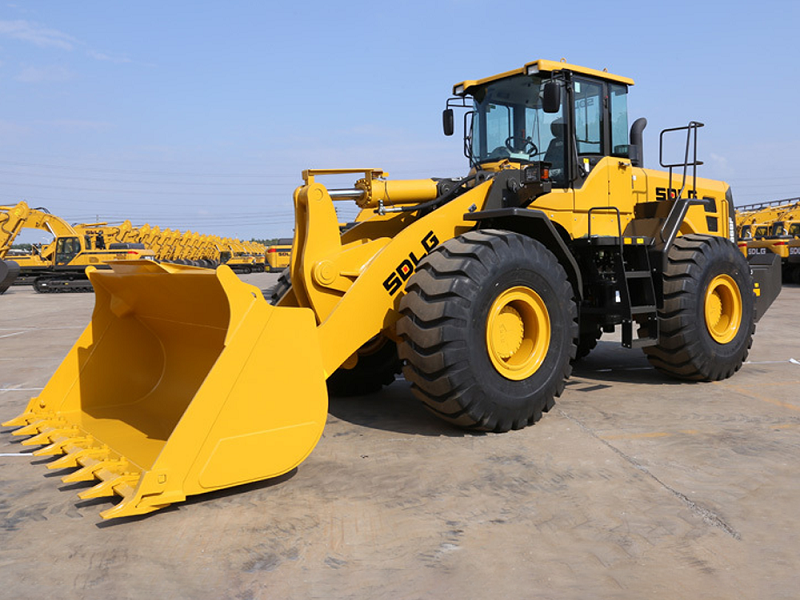

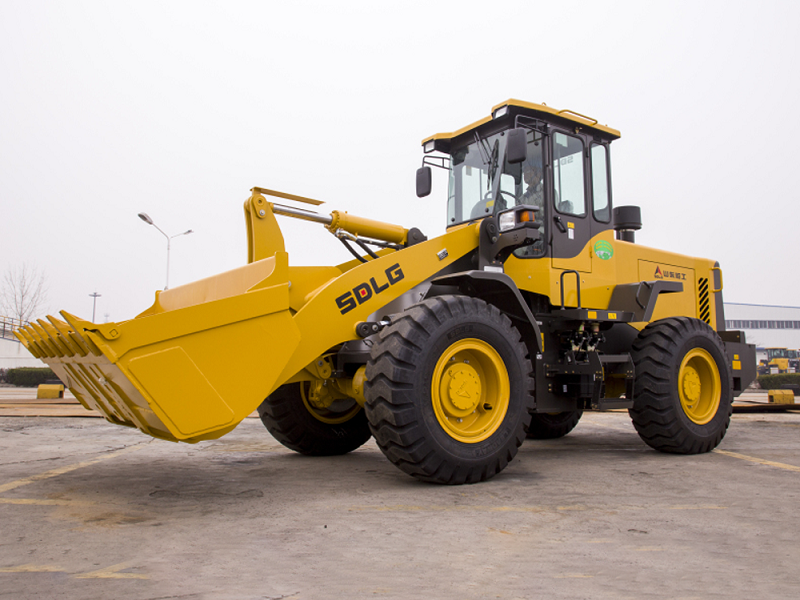

SDLG L968F Wheel Loader

L968F is a highly reliable energy-saving wheel loader newly designed in SDLG. The whole machine has a long wheelbase and a large digging force. It is tailored to the heavy work conditions such as the mining dock. The SDLG L968F wheel loader adopts a new design, which is stable.

L968F is a highly reliable energy-saving wheel loader newly designed in SDLG. The whole machine has a long wheelbase and a large digging force. It is tailored to the heavy work conditions such as the mining dock. The SDLG L968F wheel loader adopts a new design, which is stable.

SDLG L968F Wheel Loader
Overall dimension
L*W*H	8680*3200*3470 mm
Bucket capacity	3.5 m3 (3.0-5.0)
Operating Weight	19950 kg
Rated load	6000 kg
Max. dumping height	3250 mm
Max. breakout force	》=210 kN
Engine
Model	WD10G240E201
Rated Power	178 kW
Engine displacement	9726 ml
Transmission system
Torque converter	Single-stage three-element
	hydralic torque converter
Transmission type	Axis-fixed electric-hydraulic transmission
Gears	Forward 4 reverse 4
Hydraulic system	Hydraulic pilot control load sending full hydarulic articulated steering
Others	A/C
	Luxury cab in humanized design Fuel tank lock
	Adjustable steering wheel
	Radio
	Revolving Light
Optional Configuration	Different bucket
	quick coupling device
