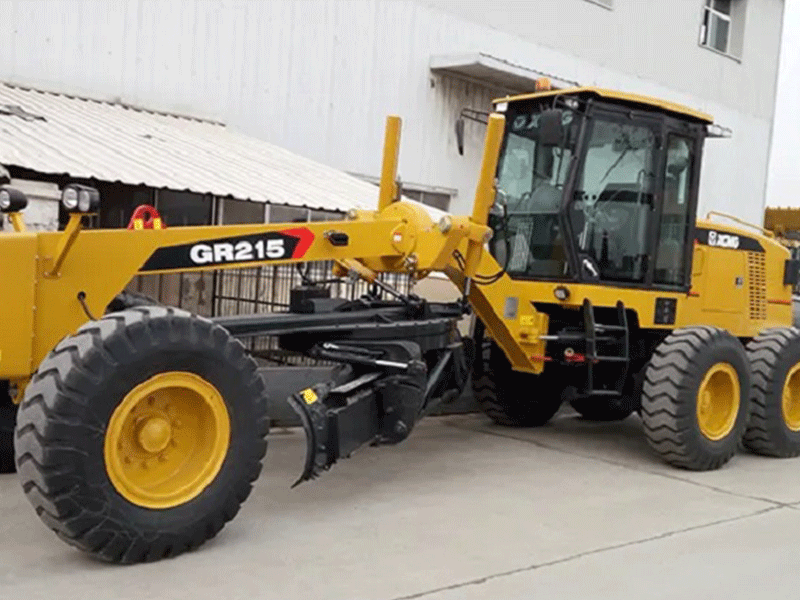

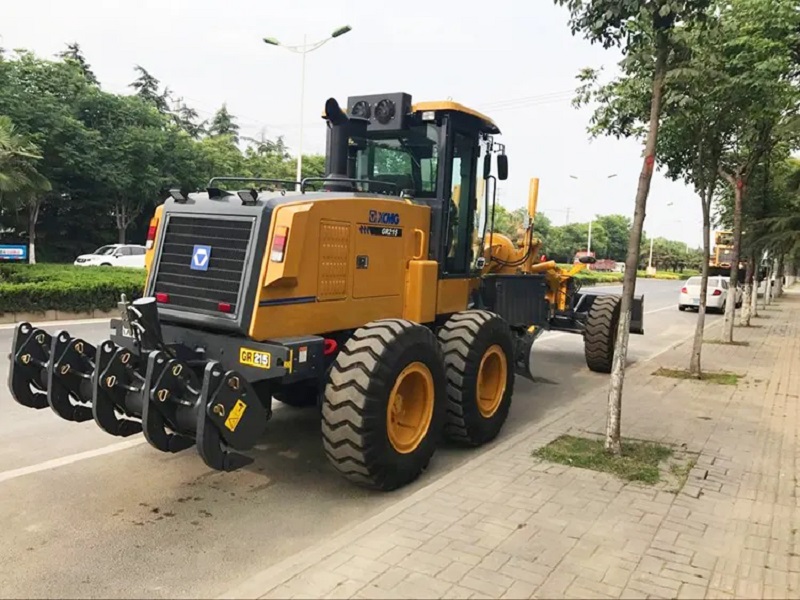

XCMG Official Road Grader GR215 160KW Motor Grader Machine

XCMG motor grader machine GR215 is mainly used for large ground surface leveling, ditching, slope scraping, bulldozing, scarifying, snow removing and other work in highway, airport and farmland.

XCMG motor grader machine GR215 is mainly used for large ground surface leveling, ditching, slope scraping, bulldozing, scarifying, snow removing and other work in highway, airport and farmland.

The grader machine is necessary engineering machinery for national defense construction, mine construction, urban and rural road construction, water conservancy construction and farmland improvement, etc.

Basic parameters	Engine model	6CTA8.3-C215
	Rated power/speed	160kW/2200 rpm
	Overall dimension (standard)	8970*2625*3420
	Total weight (standard)	16500 kg
	Tire specification	17.5-25
	Ground clearance (front axle)	430 mm
	Space of front and rear axles	6219 mm
	Space of middle and rear wheels	1538 mm
Performance parameters	Forward velocity	5, 8, 11, 19, 23, 38 kmh
	Reverse speed	5, 11, 23 km/h
	Tractive effort f=0.75	87 kN
	Maximum grade ability	20%
	Tire inflation pressure	260 kPa
	Working system pressure	16 Mpa
	Transmission pressure	1.3-1.8 Mpa
Working parameters	Maximum steering angle of front wheel	±50 degree
	Maximum slant angle of front wheel	±17 degree
	Maximum oscillating angle of front axle	±15 degree
	Maximum oscillating angle of equilibrium box	Forwards 15 degree, Reverse 15 degree
	Maximum steering angle of frame	±27 degree
	Minimum turning radius	7.3 m
