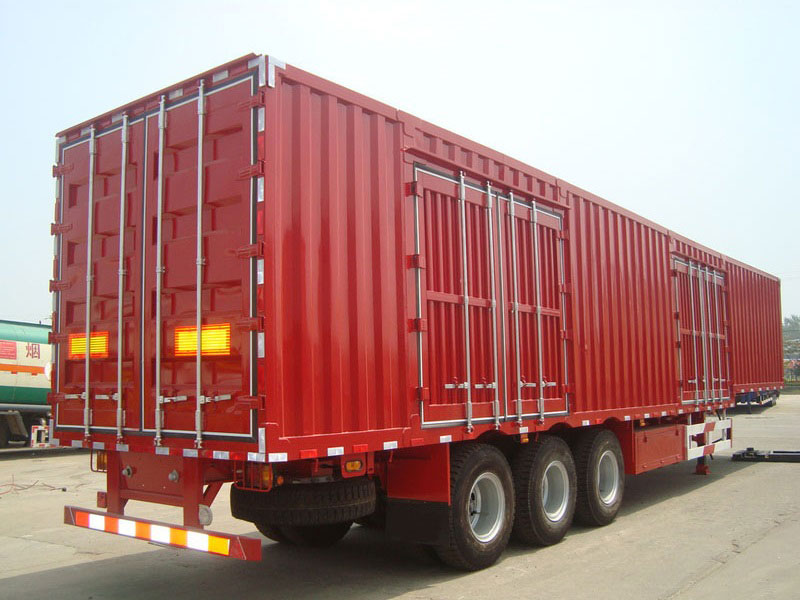

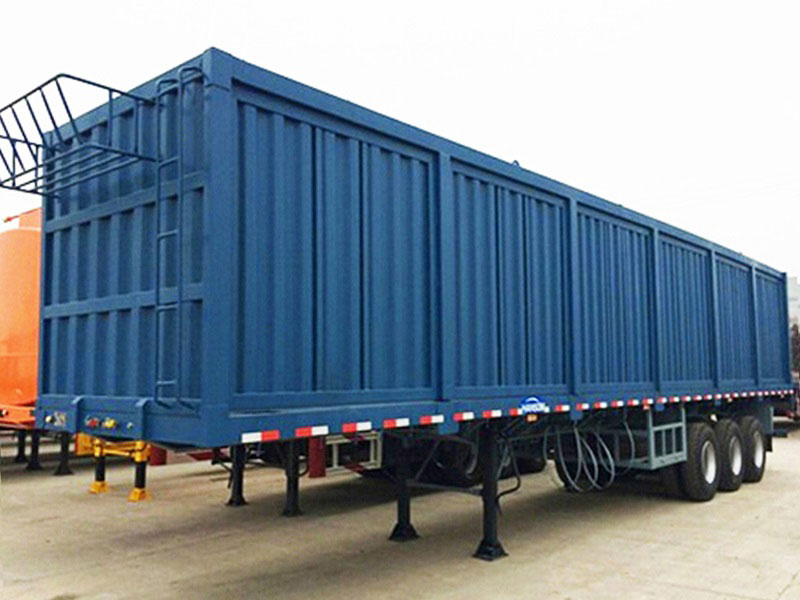

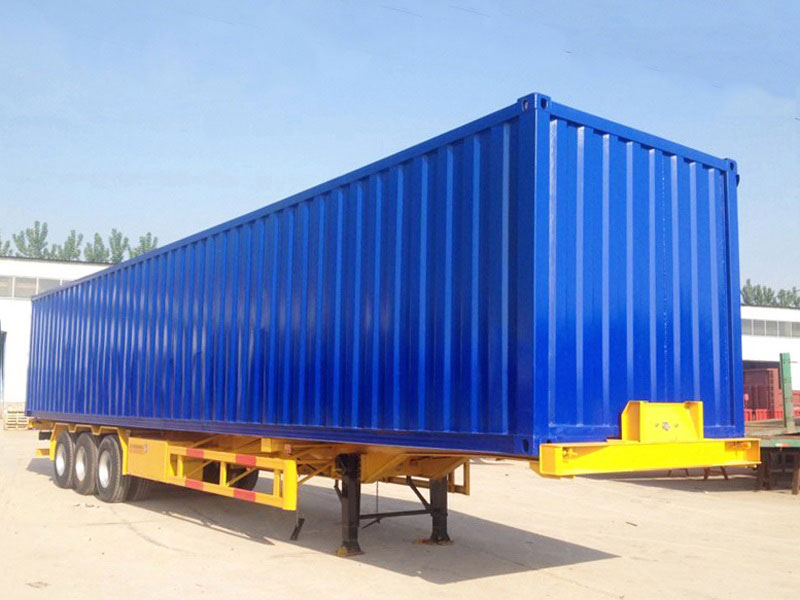

New Design 3 Axle Box Van Transport Semi Trailer for Sale

The chassis, the column, the beam, and the curtain form the main body, and the curtains on both sides can be quickly opened, and the loading and unloading of the goods are very convenient.

The chassis, the column, the beam, and the curtain form the main body, and the curtains on both sides can be quickly opened, and the loading and unloading of the goods are very convenient.

Due to its efficient transportation efficiency and multi functional solid state equipment, the box trailer has great advantages in six transportation fields such as multi modal transport, household appliances, beverages, paper rolls, auto parts, plates, and packaged goods.

Tare Weight	7.75, 7,63, 7.51 ton
Loading Capacity	28.5, 28.62, 28.74 ton
Axle Weight Load	13/16 ton
Axle No./ specs.	3
Wheel	11.00-20, 12.00-20
King Pin	2.5" or 3.5", JOST brand
Outside Dimensions (L*W*H)	13000*2550*3900, 3700, 3500, 3300 MM
Inner Dimensions (L*W*H)	13000*2550*2400, 2200, 2000, 1800 MM
Support legs	28 T, JOST brand
Wheelbase	6880 + 1310 + 1310 mm/ 6760 + 1310 + 1310 mm
Steel Spring	10/10/10, 13/13/13
Main beam	The height of the beam I s450/500 mm, upper plate is 14 mm, down plate is 16 mm, middle plate is 8 mm
	But we can according to your requirement to do.
Plateform plate	3 mm- 6 mm diamond plate
Painting	According to the requirement of the buyer
Marking	According to the requirement of the buyer
Side Guard	According to the requirement of the buyer
Tools box	According to the requirement of the buyer
