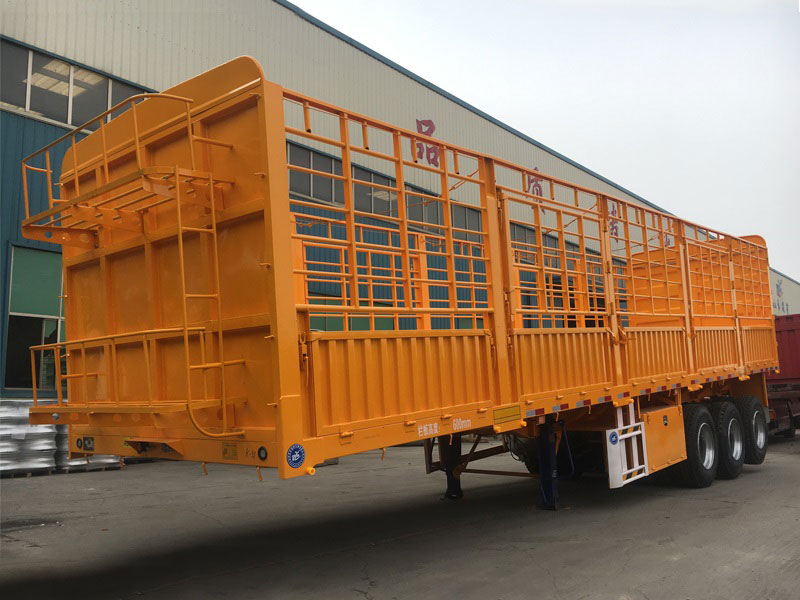

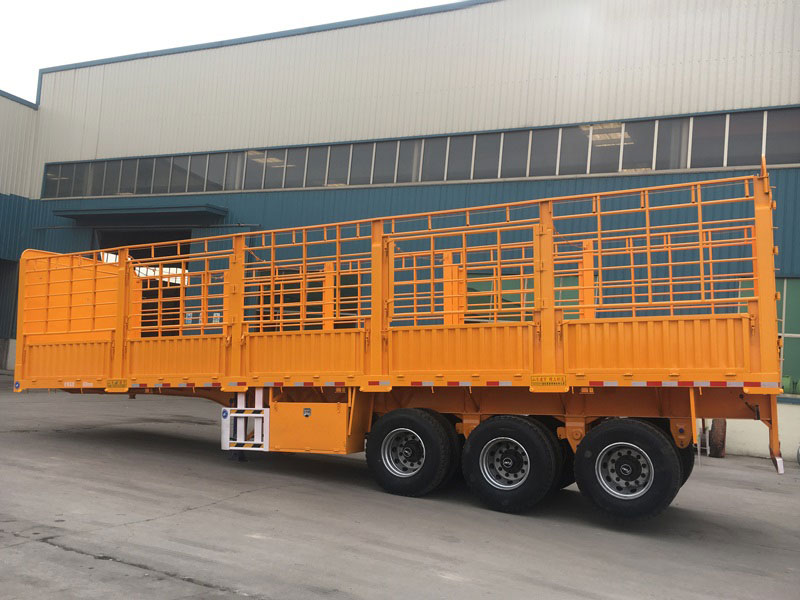

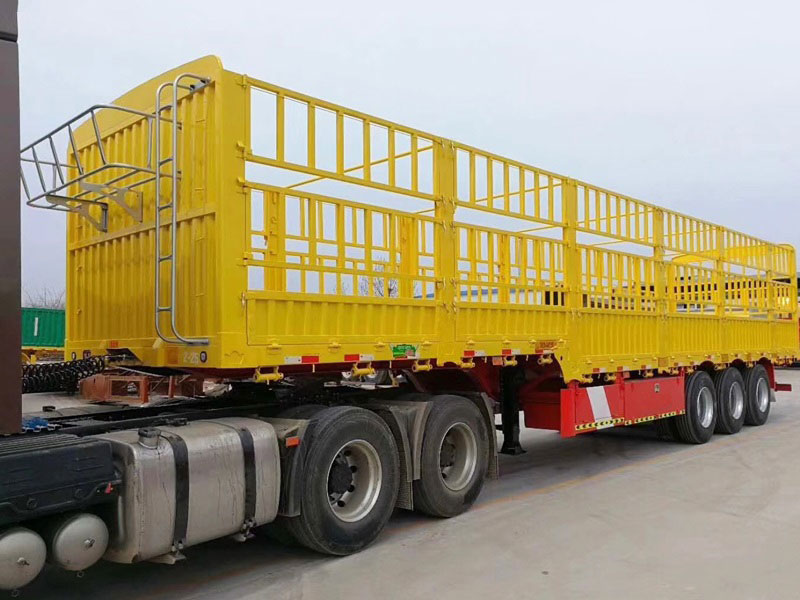

40-60 Tons Animal Livestock Transport Cargo Fence 3 Axle Semi Trailer Truck
40-60 Tons Animal Livestock Transport Cargo Fence 3 Axle Semi Trailer Truck
Complete chassis sand blasting to clean rust, 1 cost of anti corrosive primer, 2 coats of final paint, color advised by customer
Complete chassis sand blasting to clean rust, 1 cost of anti corrosive primer, 2 coats of final paint, color advised by customer
| Type | Fence cargo stake semi trailer |
| Tare Weight | Approx. 8.5 T |
| Dimension | 12500*2500*2550 mm |
| Loading Capacity | 60 T |
| Axle | 13T/16T, FUWA/BPW …. |
| Rim | 9.00*22.5 / 8.00-20/8.5-20 |
| Suspension | Mechanical suspension (Germany type or America type) or Air suspension |
| Leaf Spring | 90 (width) mm*13 (thickness) mm*10 layer (especial for exporting market) |
| King pin | JOST brand 2.0 or 3.5 inch |
| Support leg | JOST brand two speed |
| Main beam | Q345B steel |
| Side beam | 14# channel sttel (Material is Q235B steel) |
| Bottom Platform | 2 mm checkered steel plate |
| Side wall | 600/800 mm height (can be customized) |
| ABS | Optional |
| Twist locks | Optional |
| Light | LED Light (espcial for exporting market) |
| Voltage | 24V |
| Receptable | 7 ways(7 wire harness) |
| Tool box | One piece 1 m*0.5 m * 0.5 m (size can be customized) |
| Painting | Complete chassis sand blasting to clean rust, 1 cost of anti corrosive primer, 2 coats of final paint, color advised by customer |
| Shipping terms | By bulk vessel, RORO, or 40 HQ container |
