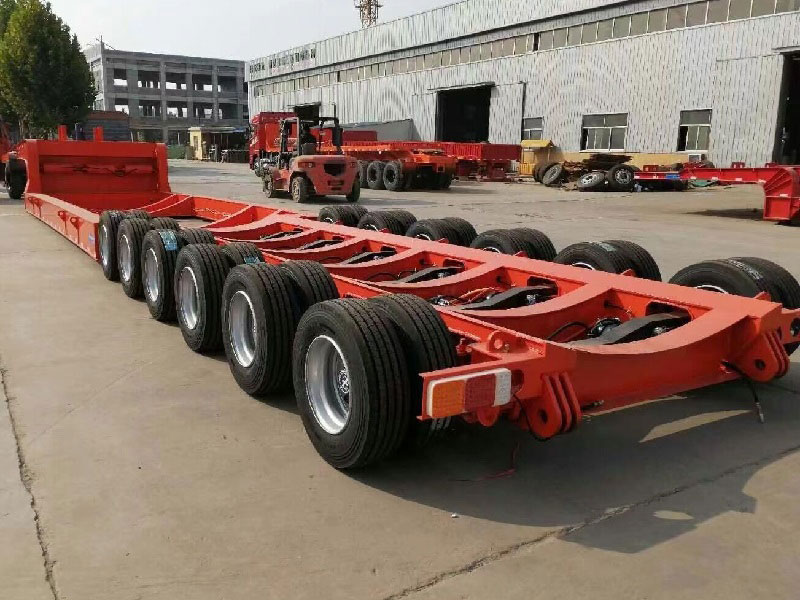

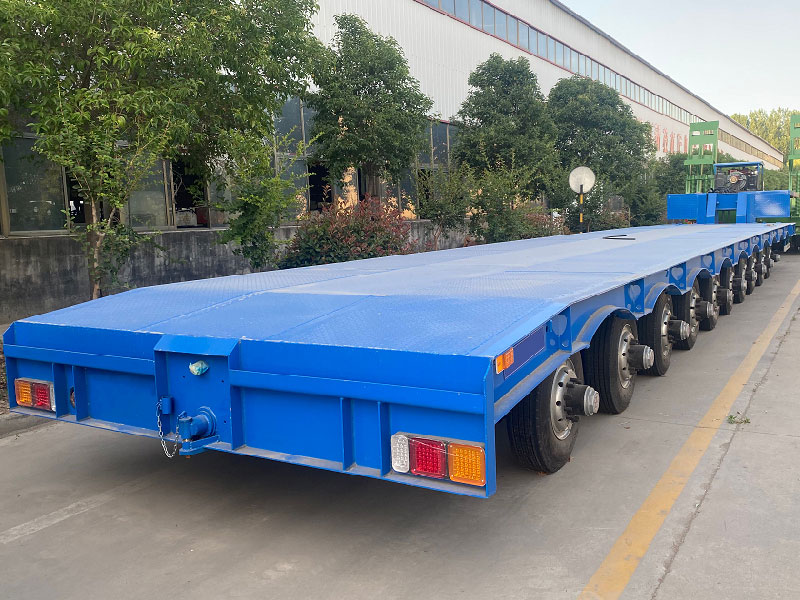

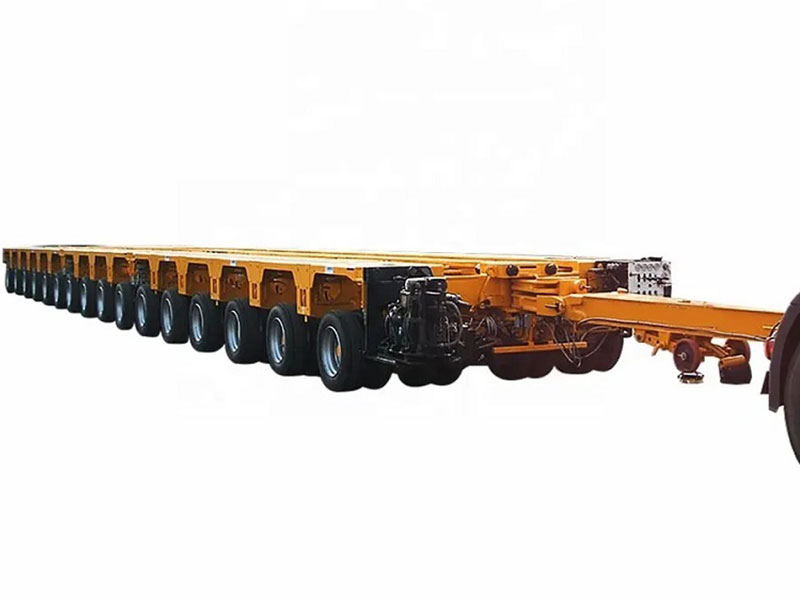

Hydraulic Gooseneck Modular Semi Trailer

Hydraulic Gooseneck Modular Semi Trailer

Modules are connected by common multiple sets of connecting pieces, which have high connection strength and are not easy to break; the splicing is convenient and the splicing speed can be greatly improved.

The main beam of the frame is welded with extra-thick steel plates, which has high strength, is not easy to deform, and can carry concentrated loads.

The hydraulic suspension adopts dual line ystem to ensure driving safety.

Suspensioin	Stroke hydraulic + / - 300 mm
Basic module width	3000 mm + 3000 mm
Angle of rotation axis	±55 degree
The control system	Integrated into the central frame
Air cylinders
Oil tank
Main beam Material	AH60, 40Cr
Tire Size and Numbers	215/75 R 17.5
Wheelbase	1500mm
Modules Connections	Side battle for different combinations. Axle units mounted on the frame by bolting
Equipment for Modular Combinations
Diesel Power Plant	22 kW
Standard Shaft	3000mm long, flexible coupling ring, diameter 50 mm
Operating head	2 file combination
Wireless Remote Control	Handheld operator panel / Transmitter - 1 piece
Braking system	Dual line braking system with automatic air brake and ABS
Operating panel	1 pc with leveling system
Alarm panel	2 pairs
Flashing light	2 pcs
Tool Box	1 set of standard tools
