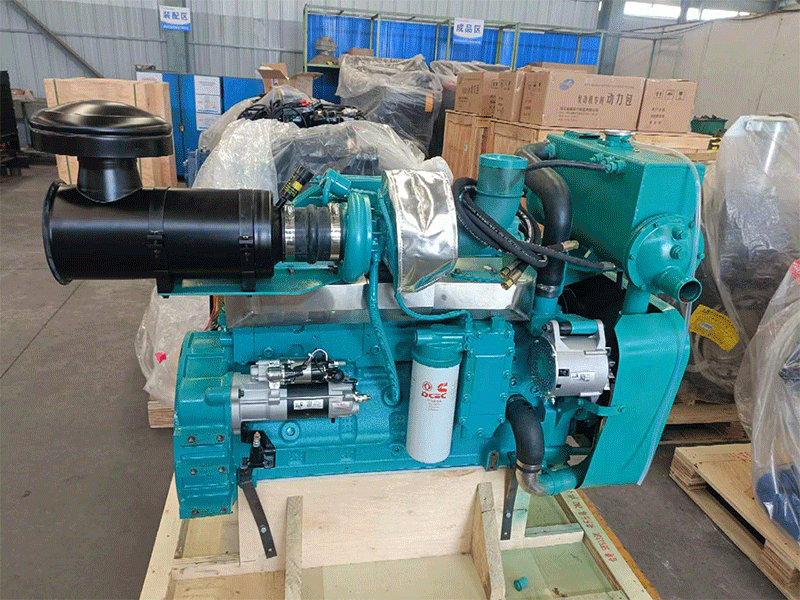

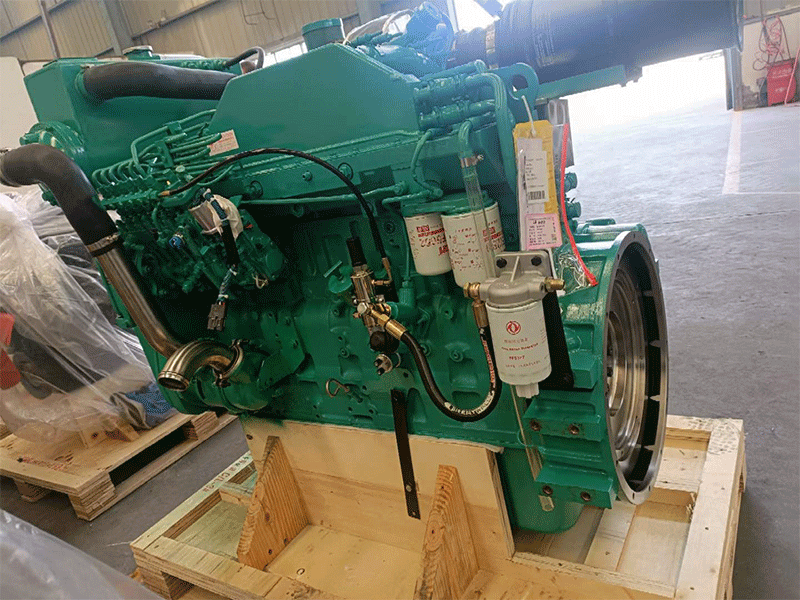

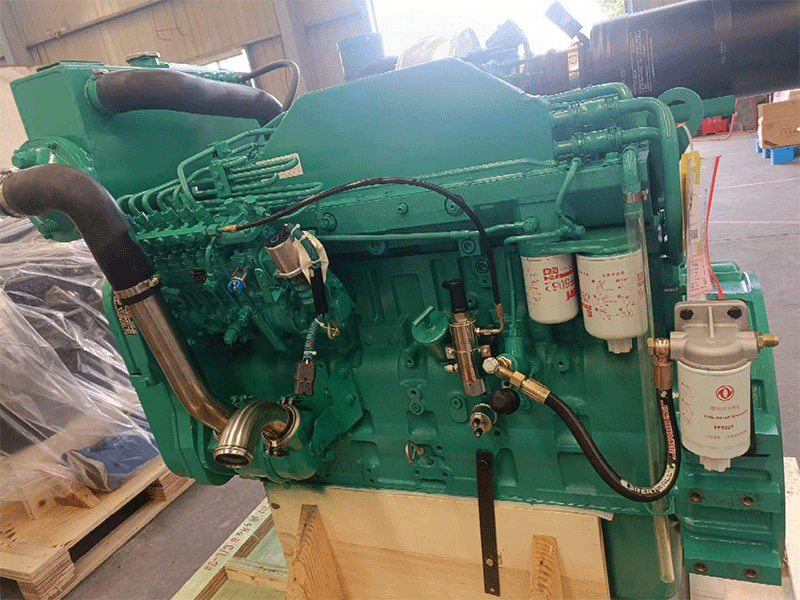

6CTA8.3-M220

Cummins 6CTA8.3-M220 – Original from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA, fully Cummins technology.
This engine is widely used on boats, fishing boats, yachts, motorboats, tug boats, cargo ships, passenger ships, barges, etc.
Cummins marine engine Agent price and Genuine Cummins Parts Wholesaler.

Model	6CTA8.3-M220
Type	6 Cylinders in Line
Displacement	8.3L
Bore*Stroke	114 * 135mm
Net Weight	674 Kg
Overall dimension	1360mm780mm988mm
Engine Configuration No.	D413065MX03
Manufacture plant	Dongfeng Cummins Plant
Rated Power/Speed	164 kW/220HP @ 1800 rpm
Max. Power/Rated Speed	180 kW/ 242HP @ 1858 rpm
Max Torque/Speed	1000 N.m @ 1500 rpm
Torque/Rated Speed	954 N.m @ 1800 rpm
Low Idle Speed	630-730 rpm
High Idle Speed	2025-2125 rpm
Fuel Consumption (Running Speed)	≤ 49 L/hr
Certification	CCS Certificates
Aspiration	Turbocharged/Water-air cooled
Fuel System	BYC PB Pump/R801 Governor
Starting System	Electrical Start (12V/24V)
Governor Type	Mechanical Control
Compression Radio	17.3:1
Engine Cooling Fluid Volume	12.3 L
Lowest Starting Temp Without auxiliary system	mins 12℃
Cooling Method	Sea water pump, Heat exchanger, Water cooled

Pre：QSM11-290
Next： 6CTAA8.3-C260
