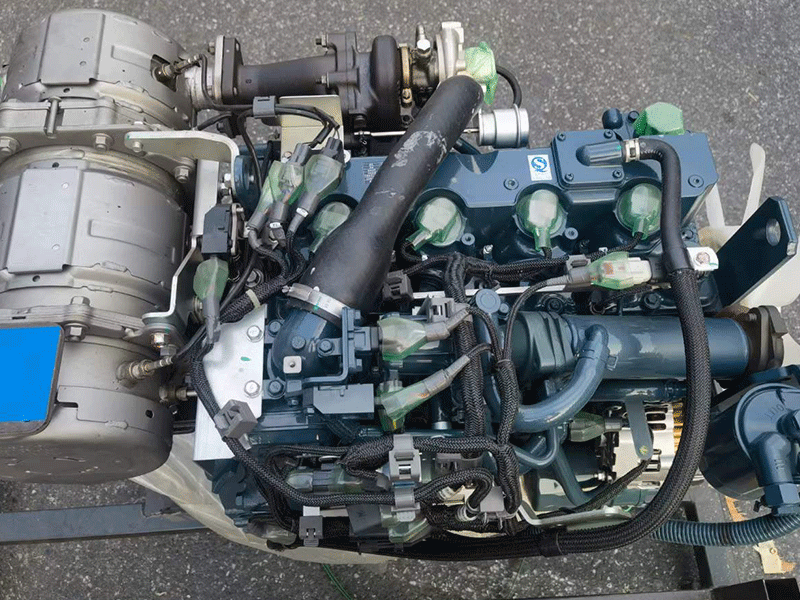

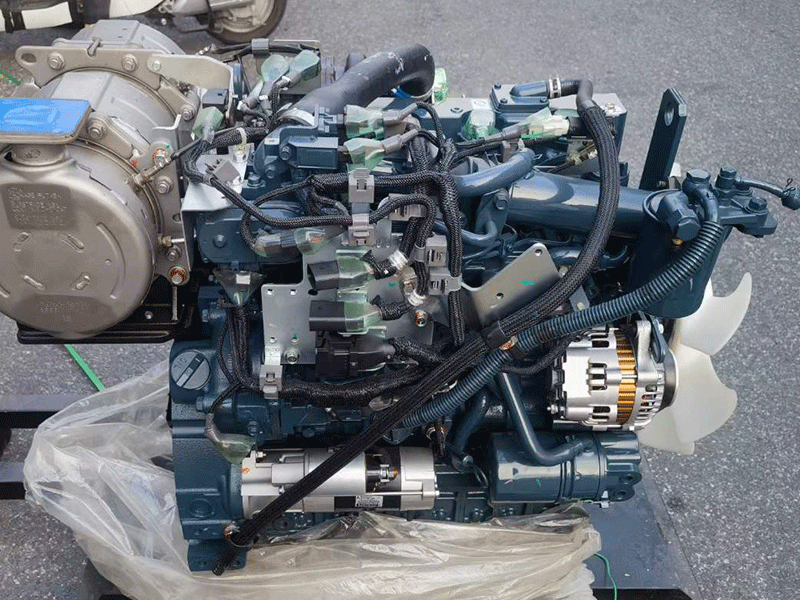

V3307-CR-T

V3307-CR-T

1. Proven Reliability and Technology
2. Clean and Quiet Power
3. Emissions Compliance
4. Flexibility
5. Trust

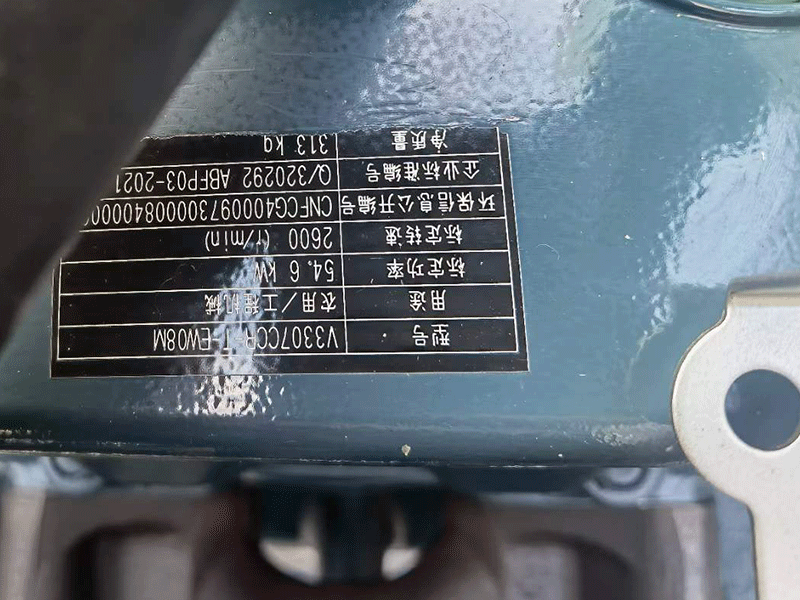

Engine model		V3307-CR-T-E4B
Emission regulation		EPA/CARB Tier 4 + EU Stage IIIB
Type		Vertical, water cooled 4-cycle diesel engine
Cylinders		4
Bore and stroke	mm (in)	94.0 x 120.0 (3.70 x 4.724)
Displacement	L (cu.in)	3.331 (203.3)
Aspiration		Turbocharged
Aftertreatment		DOC + DPF
Rated output / speed*1	kW (HP) / rpm	55.4 (74.3) / 2600
Maximum torque / speed*1	Nm (lb-ft) / rpm	265.0 (195.5) / 1500
Combustion system		Direct injection
Fuel system		Common rail system
Length x Width x Height*2	mm (in)	655 x 561 x 752 (25.8 x 22.1 x 29.6)
(without aftertreatment unit)	mm (in)	655 x 561 x 752 (25.8 x 22.1 x 29.6)
Length x Width x Height*3	mm (in)	856 x 561 x 752 (33.7 x 22.1 x 29.6)
(with aftertreatment unit)	mm (in)	856 x 561 x 752 (33.7 x 22.1 x 29.6)
Dry weight	kg (lb)	305 (672)
