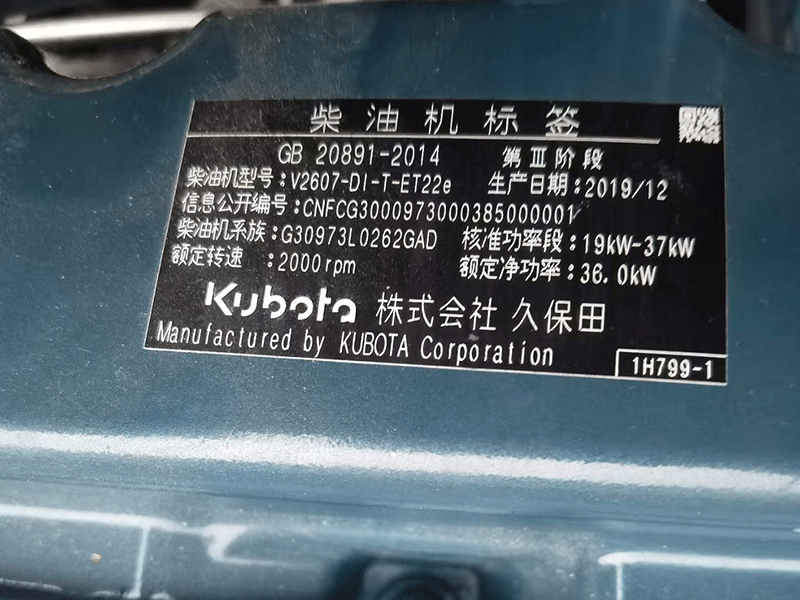

V2607-D1-T-ET22e

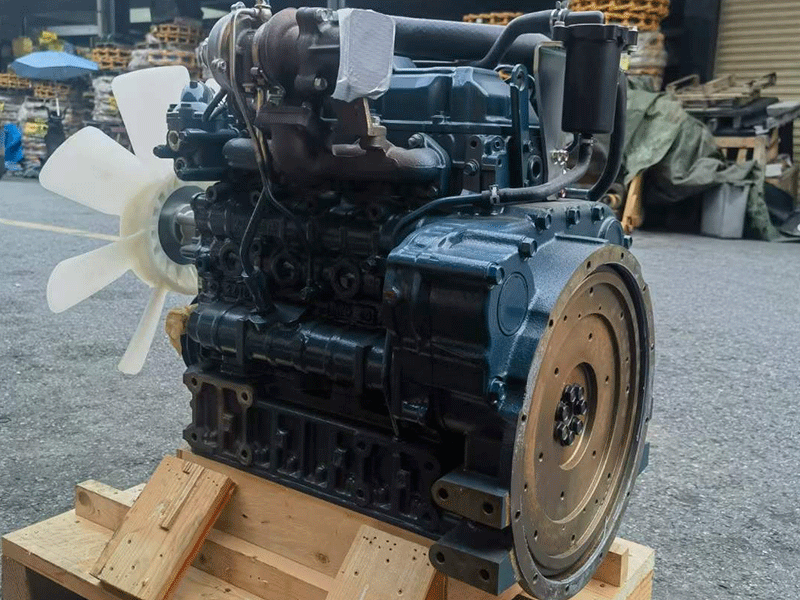

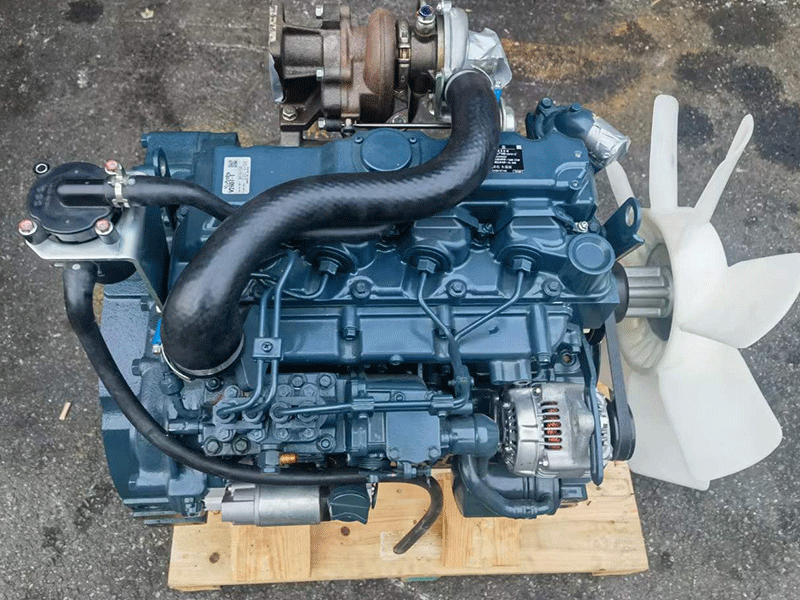

The Kubota 07 Series features an engine design developed to meet the various requirements of a wide range of industrial applications.
Kubota’s unique cylinder block design was developed using our original casting technology. The engine package is smaller than that of the current 2.4L engine, and yet the displacement is larger.
The improved cooling system, with a main water gallery and water passages between cylinder bores as a heat load
Kubota’s unique cylinder block design was developed using our original casting technology. The engine package is smaller than that of the current 2.4L engine, and yet the displacement is larger.
The improved cooling system, with a main water gallery and water passages between cylinder bores as a heat load
countermeasure, provides high power density and superior endurance in the reliable Kubota 07 Series.The Kubota 07 Series brings Kubota’s seamless range up to 100 HP.
| Engine model | V2607-DI-E3B | |
| Emission regulation | EPA/CARB interim Tier 4 level + EU Stage IIIA | |
| Type | Vertical, water cooled 4-cycle diesel engine | |
| Cylinders | 4 | |
| Bore and stroke | mm (in) | 87.0 x 110.0 (3.43 x 4.331) |
| Displacement | L (cu.in) | 2.615 (159.6) |
| Aspiration | Naturally Aspirated | |
| Aftertreatment | - | |
| Rated output / speed*1 | kW (HP) / rpm | 36.5 (48.9) / 2700 |
| Maximum torque / speed*1 | Nm (lb-ft) / rpm | 170.0 (125.4) / 1600 |
| Combustion system | Direct Injection | |
| Fuel system | In-line pump | |
| Length x Width x Height*2 | mm (in) | 623 x 481 x 640 (24.5 x 18.9 x 25.2) |
| (without aftertreatment unit) | ||
| Length x Width x Height*3 | mm (in) | - |
| (with aftertreatment unit) | ||
| Dry weight | kg (lb) | 225 (496) |
